Product Description

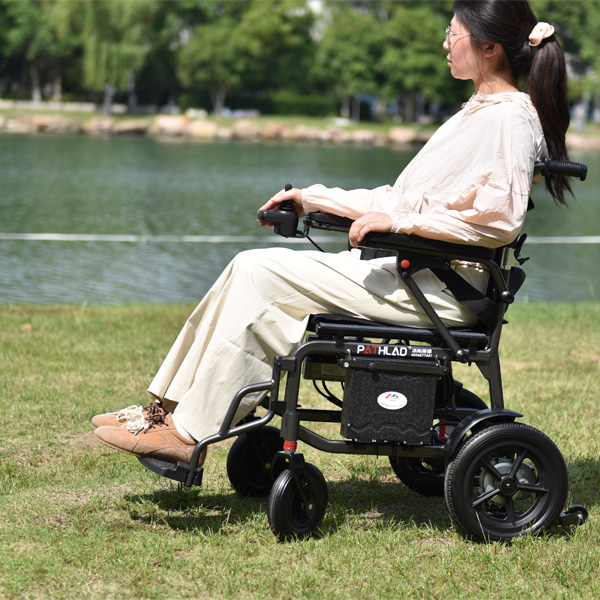

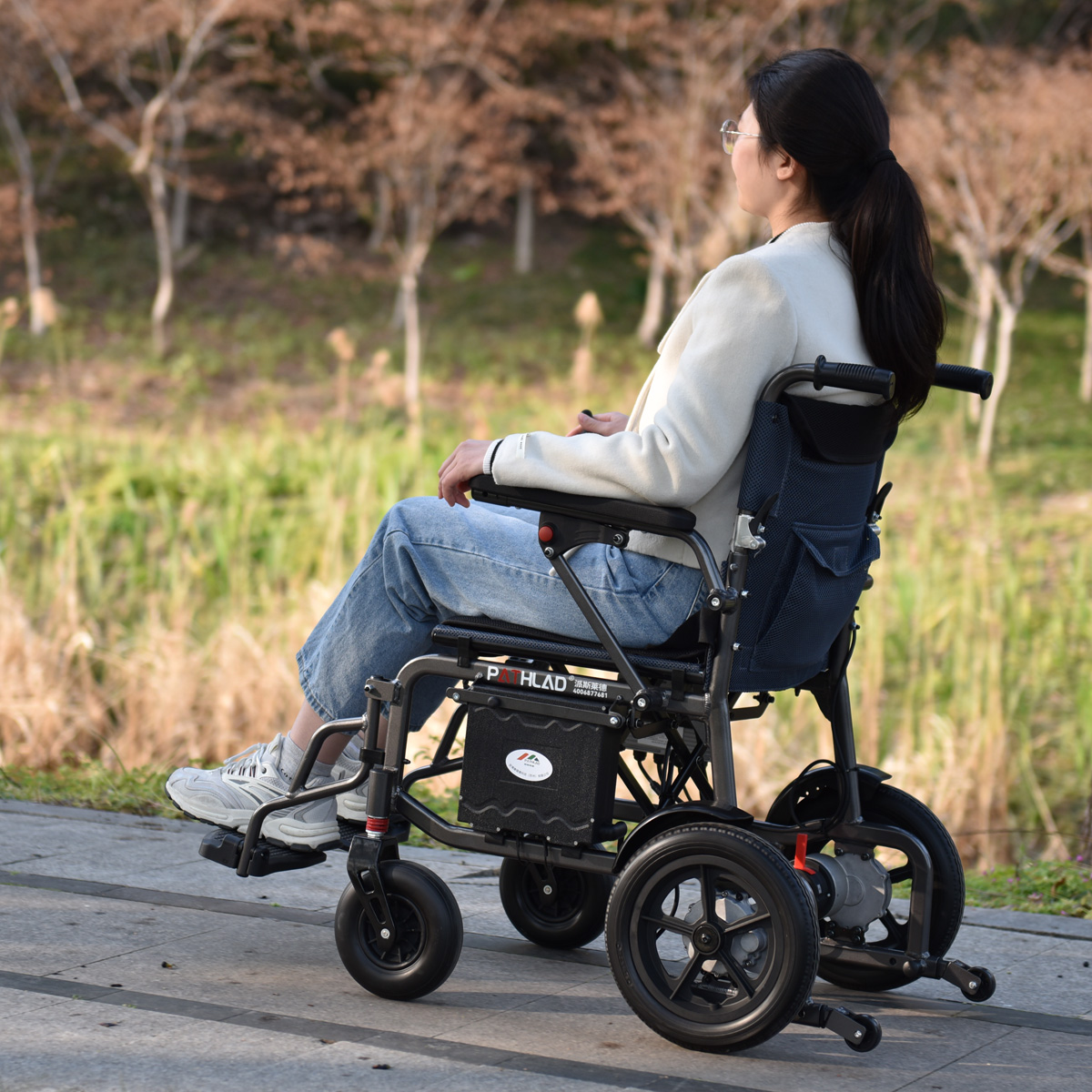

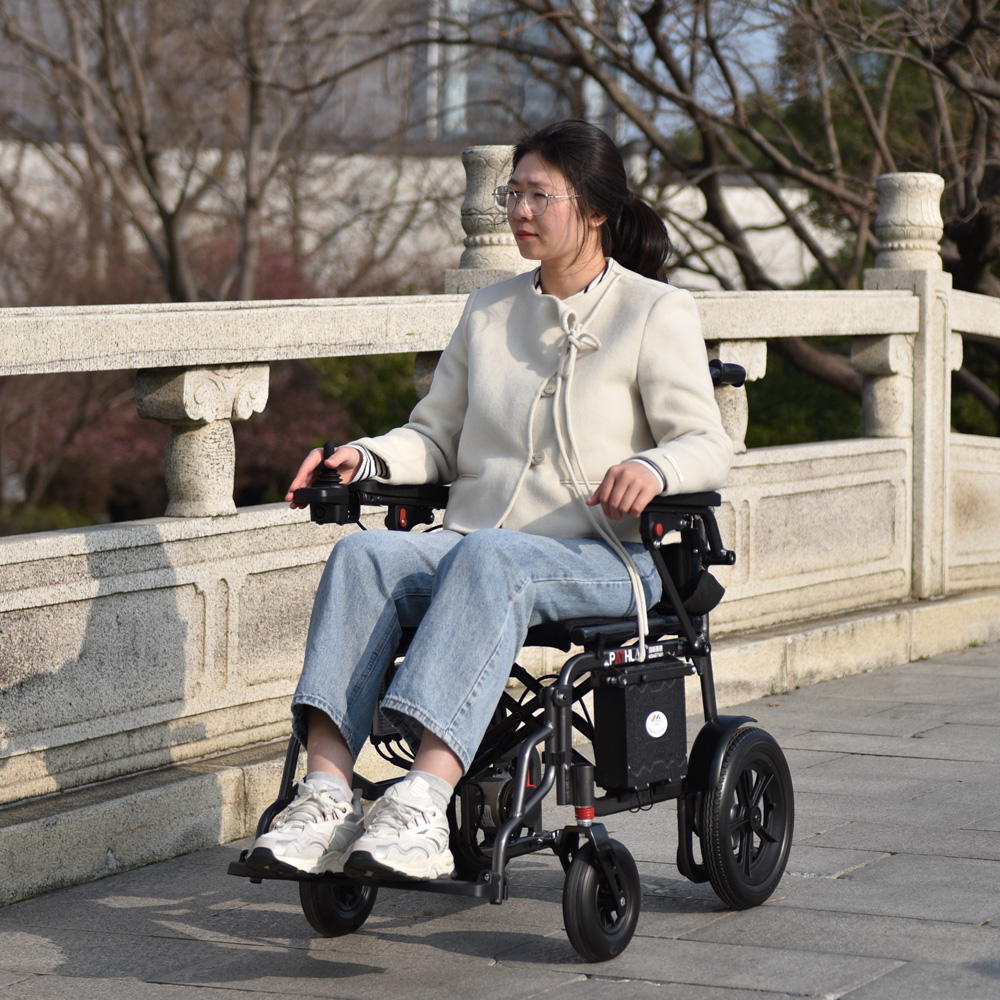

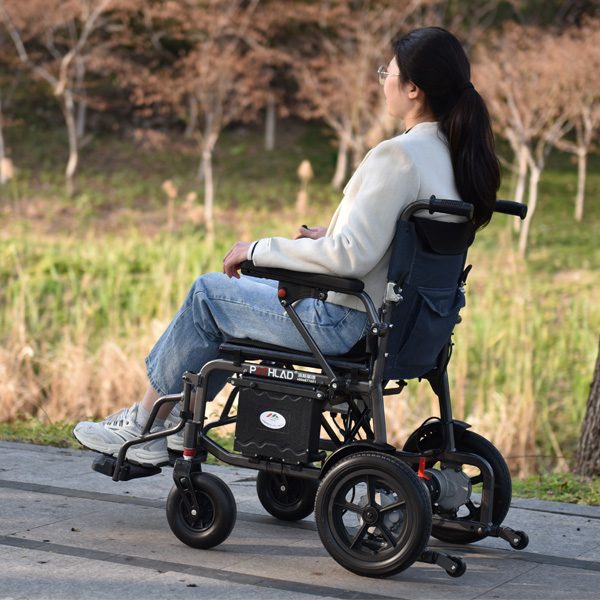

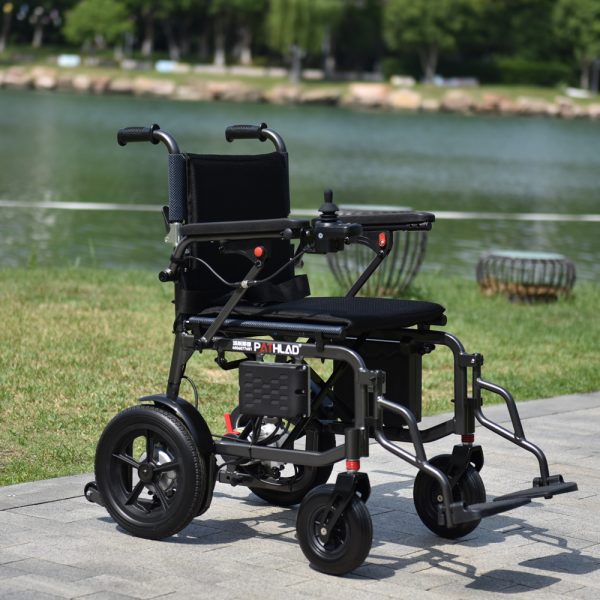

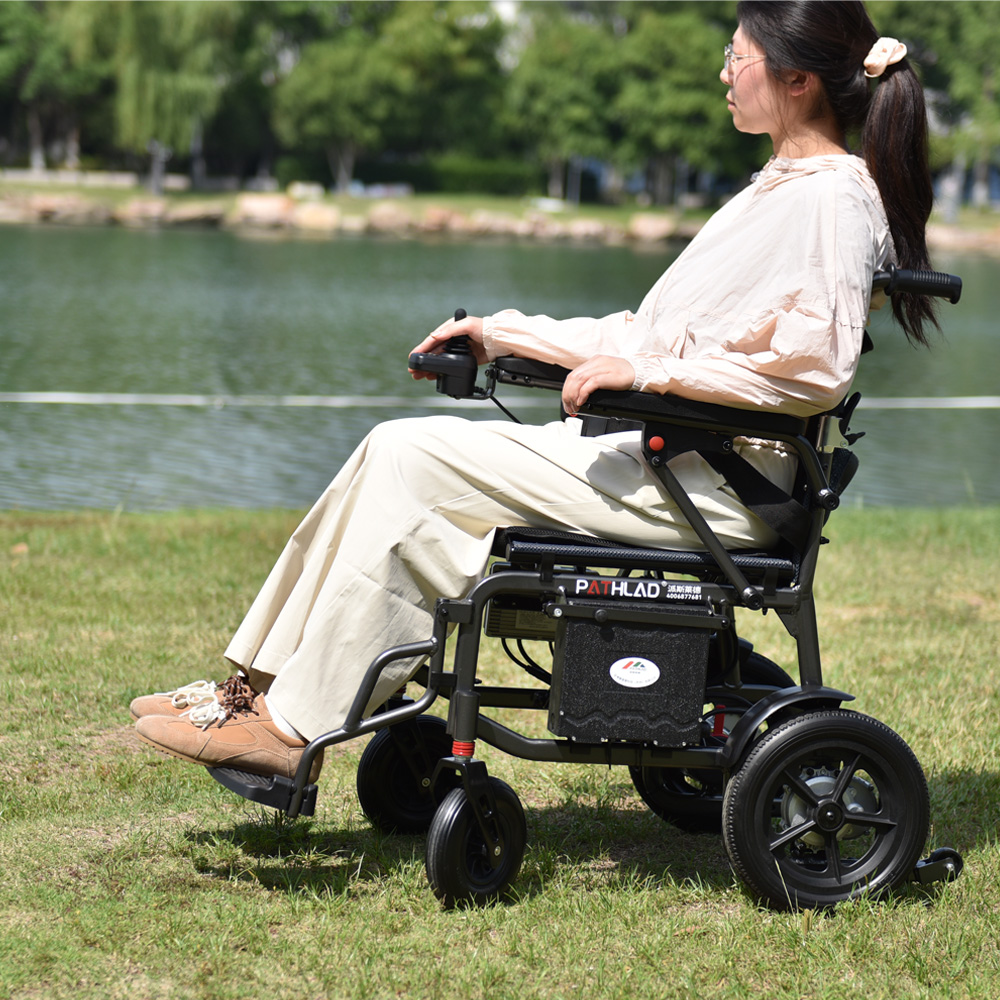

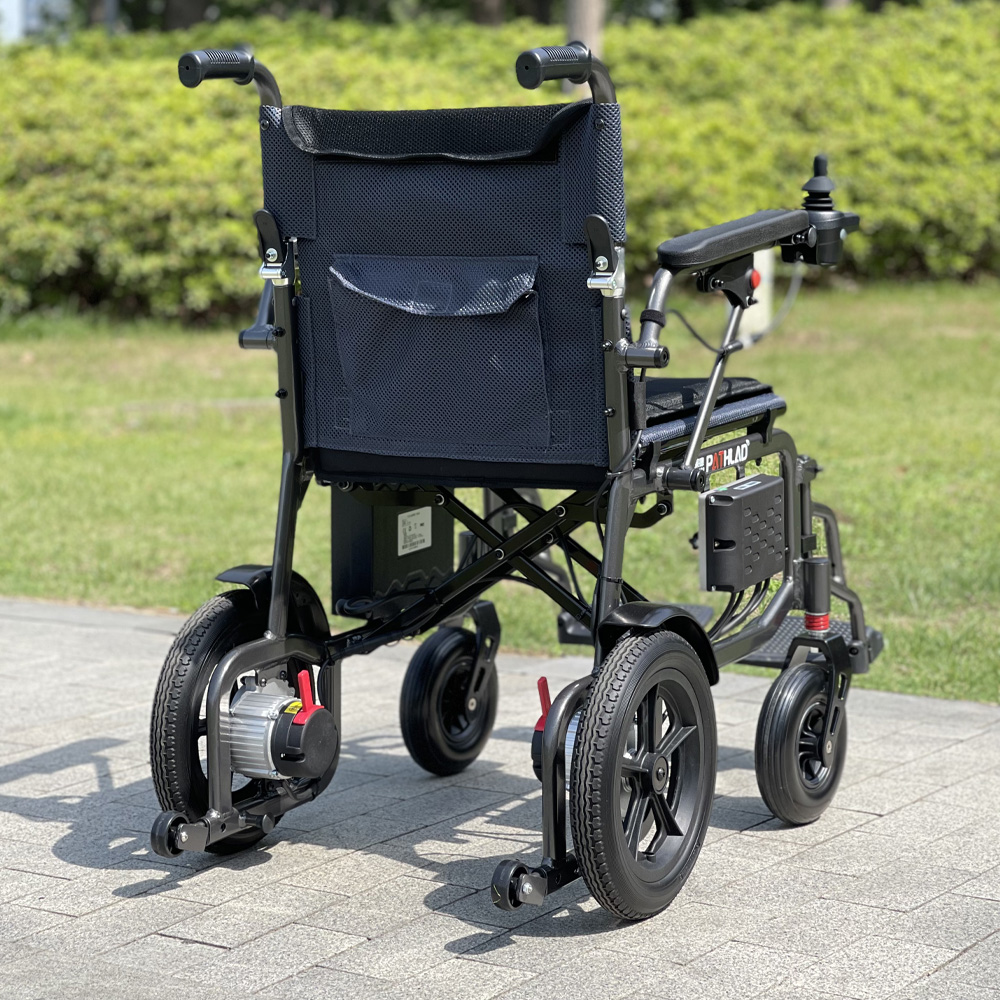

Pathlad Light Brushless Electric Wheelchair A6
The Pathlad A6 is equipped with an aluminum alloy frame, a brushless motor, a brushless controller, a portable lithium battery, and weighs only 19kg with a 12ah lithium battery.
Classic X-shaped frame structure, suitable for various terrains, reinforced seats, better support, and smoother driving.
Product Features
1、Lightweight and compact
The wheelchair weighs 19kg including batteries, has a high-strength aluminum alloy frame, is easy to fold and carry.
2、Solid materials
The seat cushion fabric is made of Textilene, which boasts high tensile strength, is waterproof, oil-resistant, and UV-resistant, ensuring a long service life.
The wheel hubs are made of nylon 66, offering wear resistance and rigidity while reducing the wheelchair’s weight.
The front and rear high-rebound, airless tires are explosion-proof and puncture-proof, while also providing shock absorption.
3、Sophisticated design

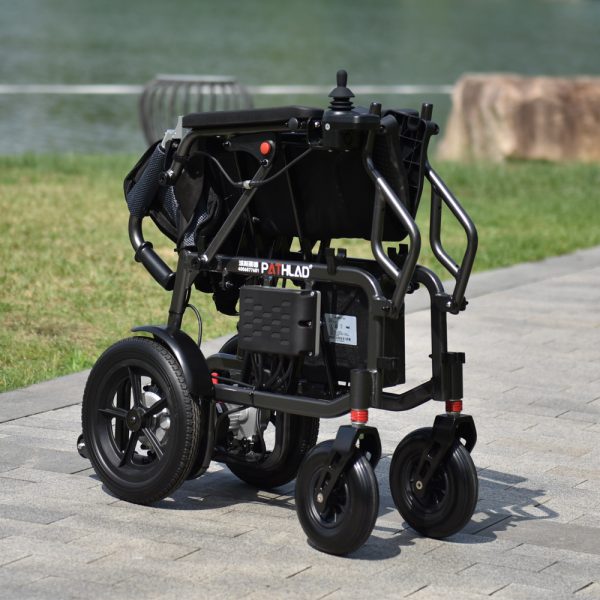

Foldable backrest and footrest make the wheelchair even smaller when folded.
Quick-release lithium battery for easy removal without leaving the wheelchair.

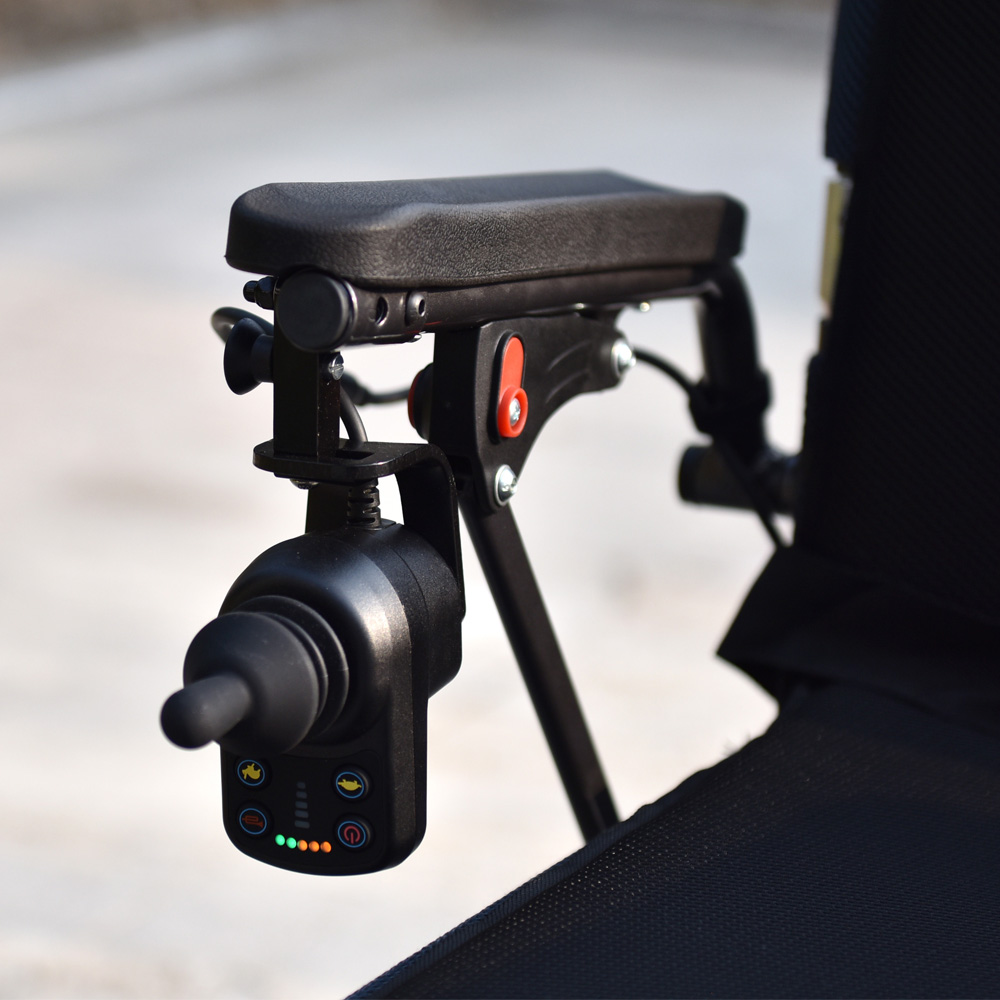

The controller folds away for space-saving and easy transportation.
Product Parameters
Product size: 980 *560 * 900mm
Folding size: 700 * 270* 720mm
Packaging size: 750* 330 * 770mm
Seat width, seat depth, seat height: 450mm, 400mm, 530mm
Front/rear wheel dimensions: 8 inches/12 inches
Net weight: 19kg
Battery voltage: 24V
Battery optional：12ah/20ah lithium battery
Motor power: 150W*2
Maximum load capacity: 100kg
Braking System: Electromagnetic Brake
Maximum speed: 6km/h
