Pathlad T5 Product description

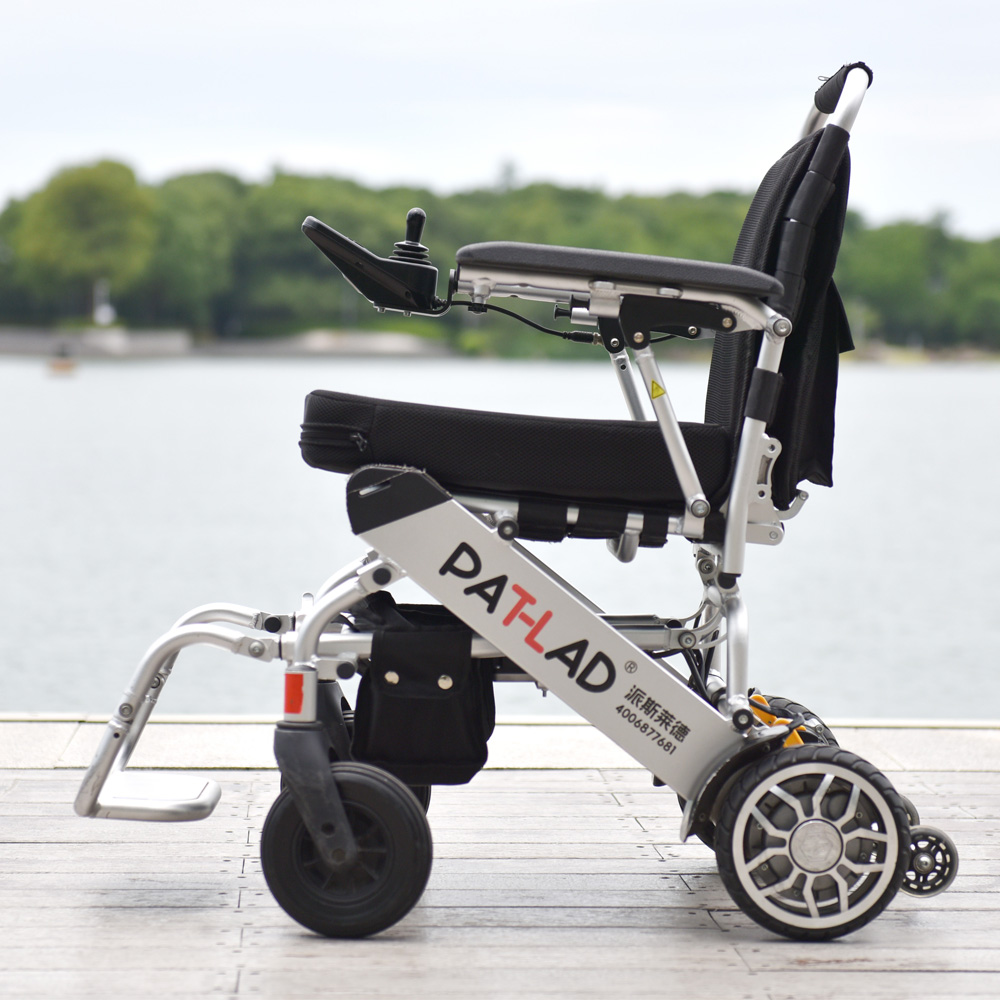

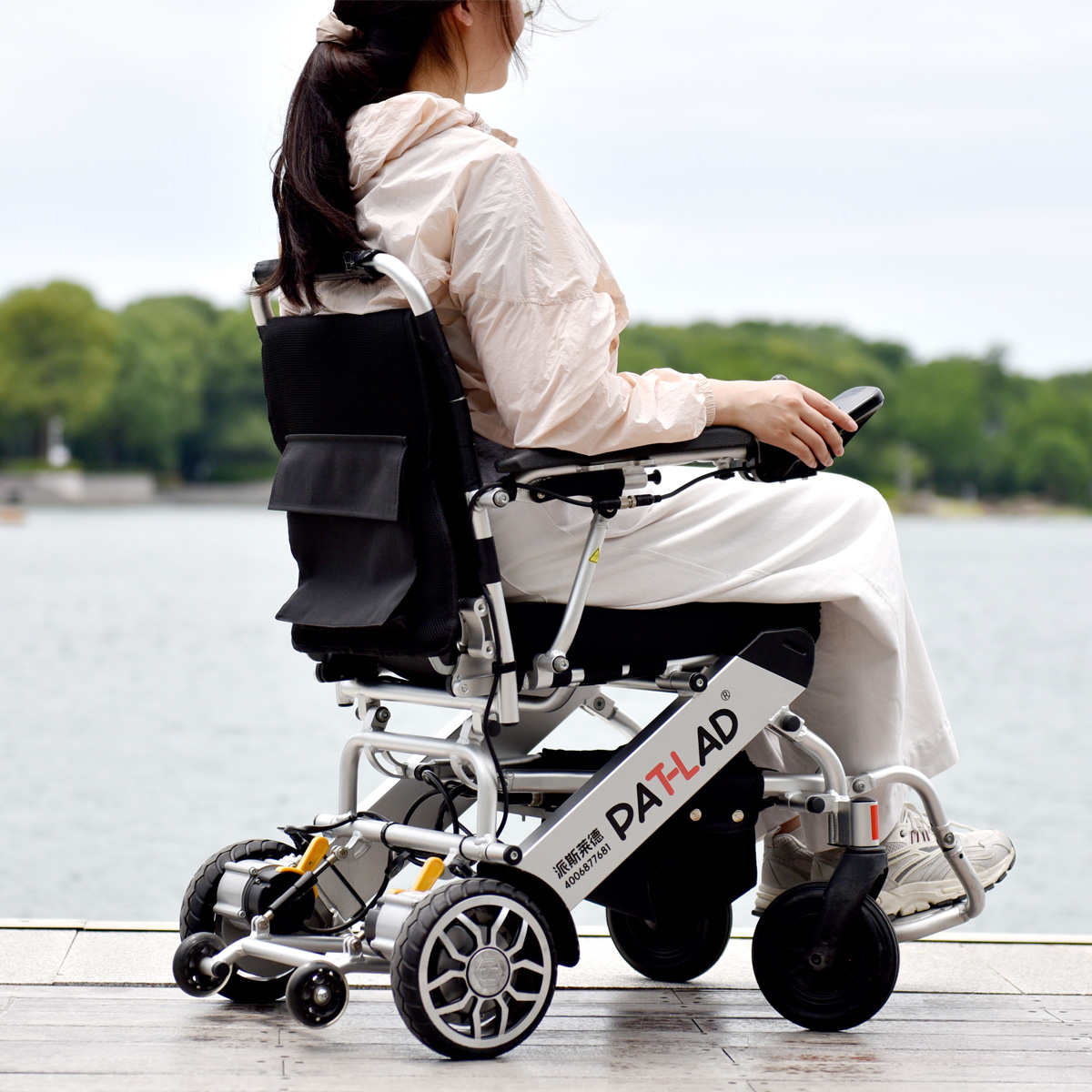

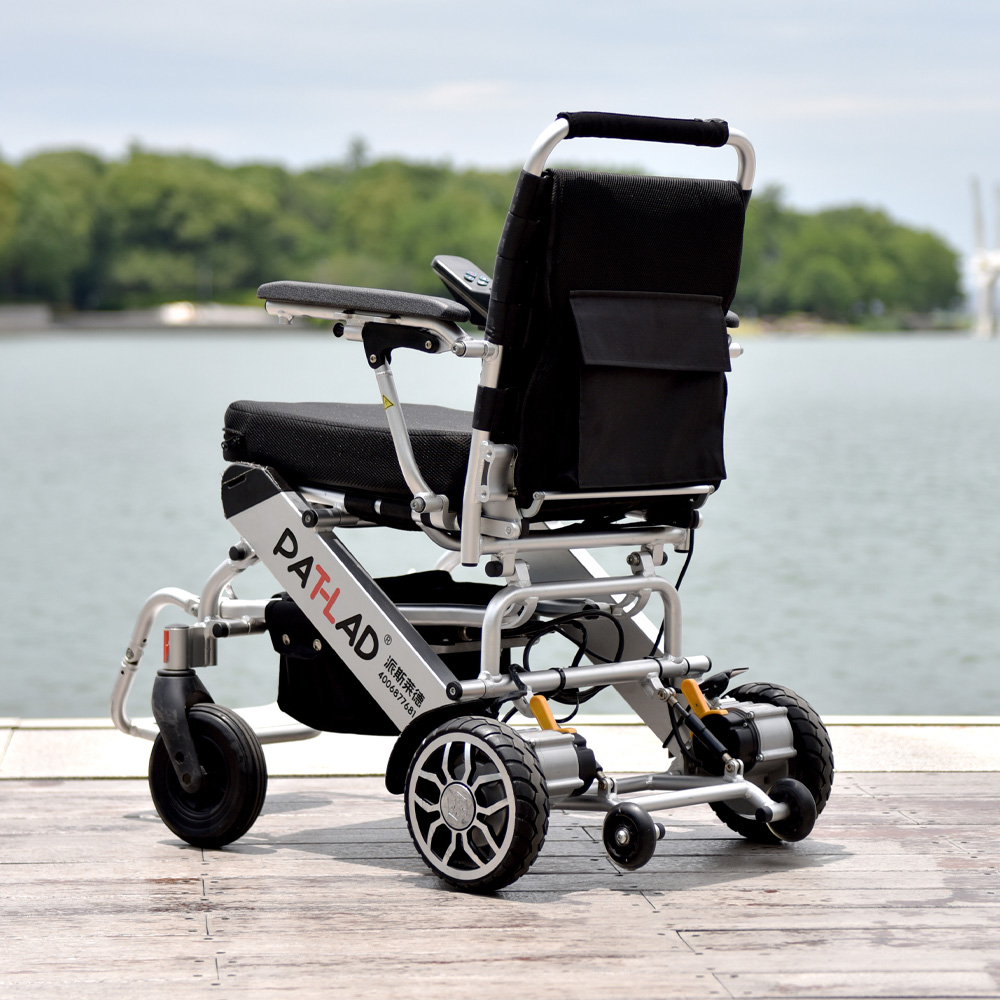

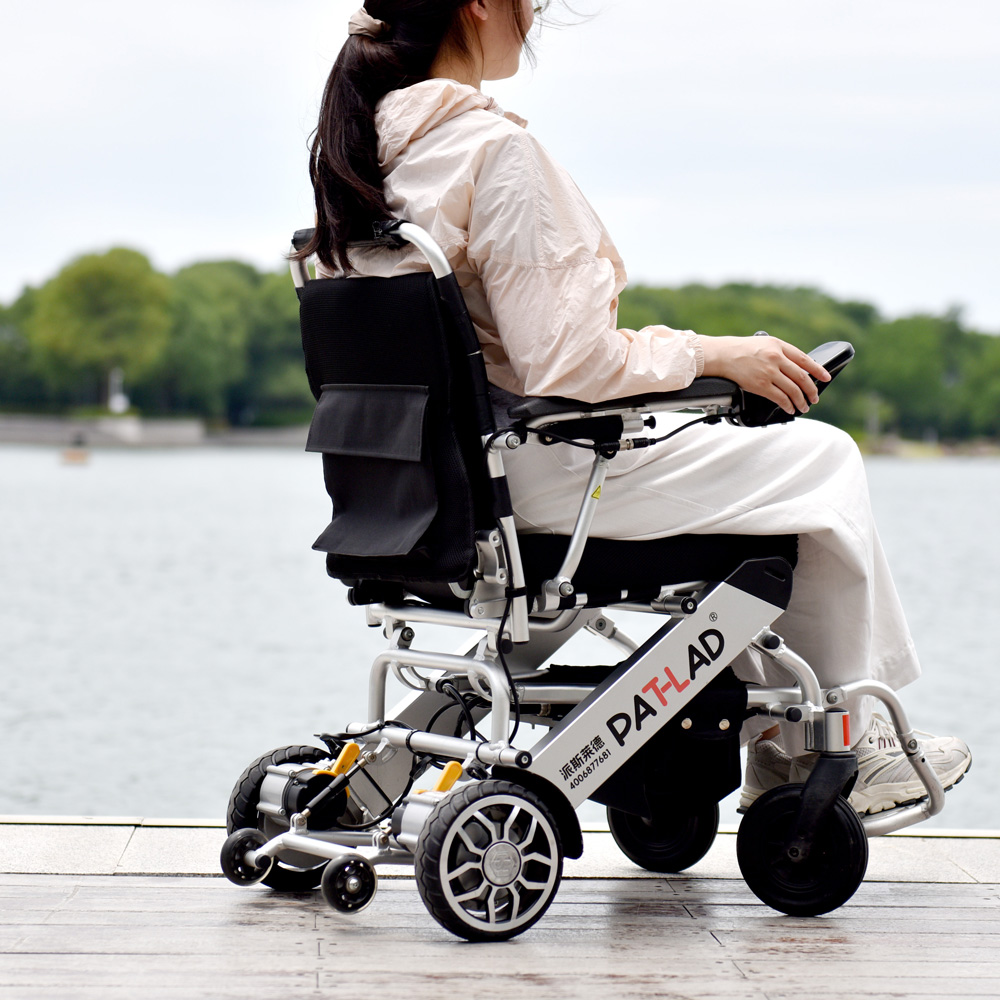

Classic small brushless electric wheelchair T5
A classic electric wheelchair that has been sold in the market for about 20 years and has received widespread praise. Exported to multiple countries, equipped with advanced surface treatment technology, high-end LCD brushless controller, high torque brushless motor, ergonomic frame structure design, making wheelchair driving a fashion trend.
Advantages and Characteristics of Pathlad T5
1、Anodizing process
The surface of the frame is treated with anodizing technology to improve the corrosion resistance and wear resistance of the aluminum material, and the surface always remains bright and new;
2、Brushless system application

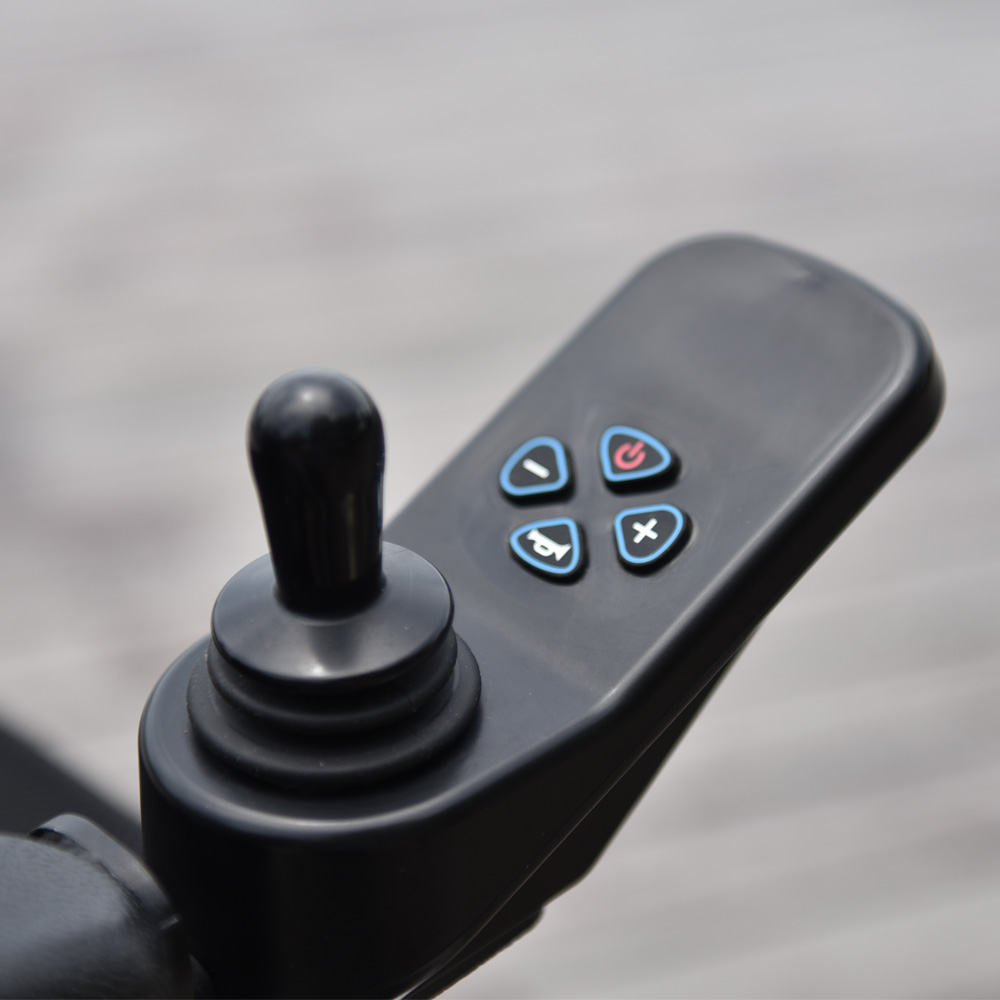

The LCD brushless controller is paired with a 500W high torque brushless motor for precise control without delay, providing strong power and a good driving experience;
3、Bilateral plug-in lithium battery
Adopting double-sided plug-in lithium batteries saves space and is beneficial for the heat dissipation of lithium batteries.
4、Adjustable foot pedal design
The foot pedal can be quickly disassembled and can stretch back and forth to adapt to users of different heights
Product Parameters
Product size: 930-1030*590*900mm

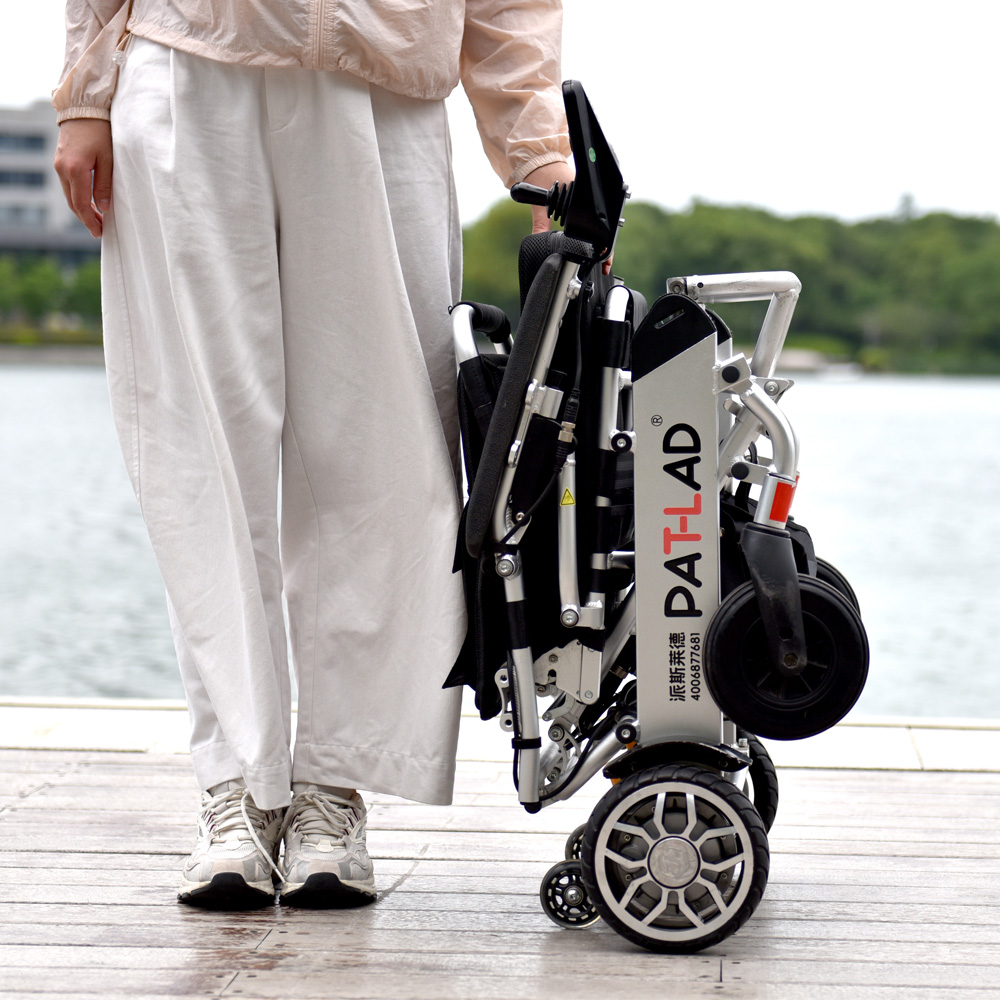

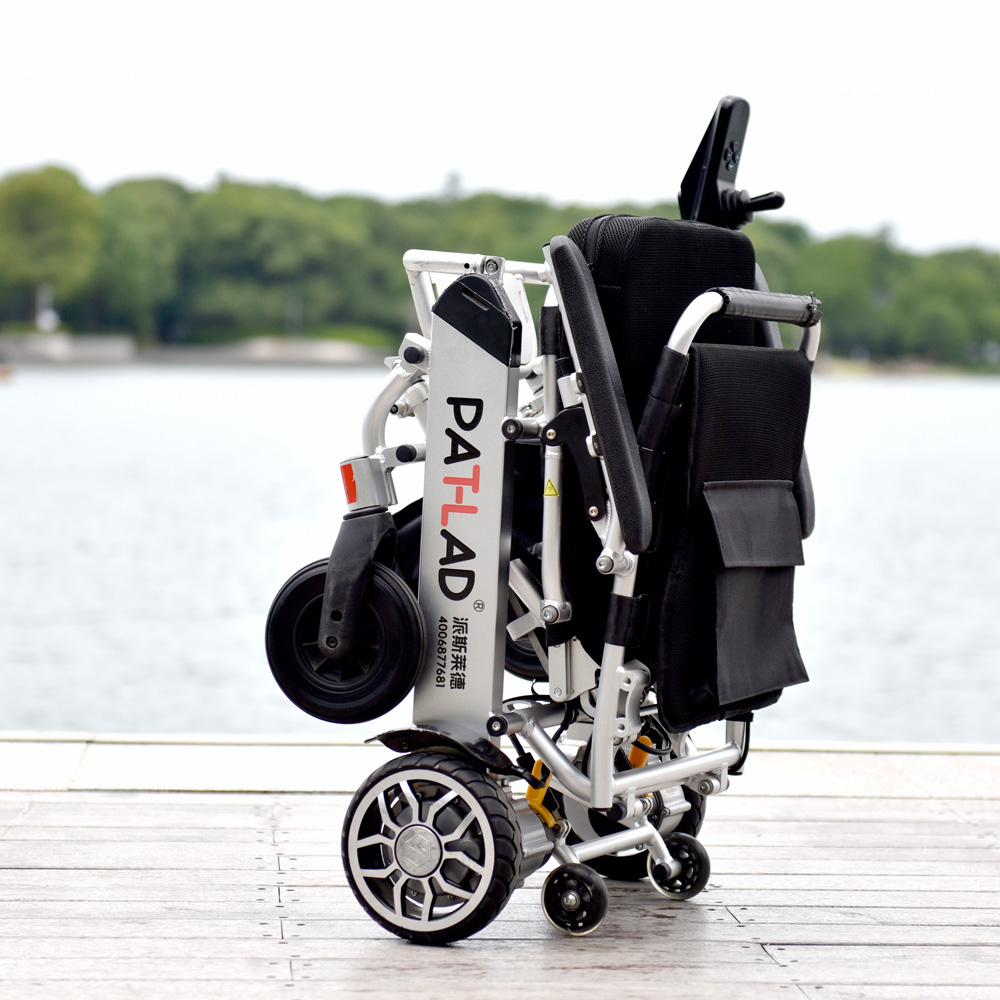

Folding size:720*590*350mm
Packaging size:670*400*770mm
Seat width, seat depth, seat height: 450mm 420mm 455mm
Front/rear wheel dimensions:7 inches/9 inches
Net weight:22.52kg
Battery voltage:24V
Battery capacity：9.6ah/9.6ah*2
Motor power: 500W Brussless
Max. load capacity: 120kg
Braking System: Electromagnetic Brake
Max. speed: 6km/h
